Yankee Hill Machine Unveils Pre-Pinned Barrel Solution

Eliminating Gunsmithing Requirements

Yankee Hill Machine (YHM) has launched an innovative approach to the traditional pin and weld process with their new 14.5-inch barrel offerings. These barrels feature factory-installed permanently-attached muzzle devices, delivering the compact profile of a pin and weld configuration without requiring professional gunsmithing services.

Engineering Innovation

Solving Traditional Installation Challenges

The conventional pin and weld process presents a significant challenge: gunsmiths must install the gas block before permanently attaching the muzzle device, since most muzzle devices have diameters that prevent gas block installation afterward. YHM has engineered an elegant solution to this common problem.

Low-Profile Muzzle Device Design

YHM's permanently-attached muzzle devices maintain the same diameter as the barrel itself, enabling any standard 0.750-inch gas block to slide over the device without obstruction. This breakthrough design provides considerable flexibility for both initial builds and future modifications.

User Benefits

Enhanced Serviceability

The uniform diameter design offers significant advantages for end users. Should gas block replacement become necessary in the future, users can perform the swap without the need to drill out and remove the permanently-attached muzzle device—a process that would typically require professional gunsmithing services.

Build Flexibility

This design innovation allows builders to complete their projects with greater ease and flexibility, while maintaining full compliance with federal regulations regarding barrel length requirements.

Product Specifications

Available Configurations

YHM offers two distinct models in their pre-pinned barrel lineup:

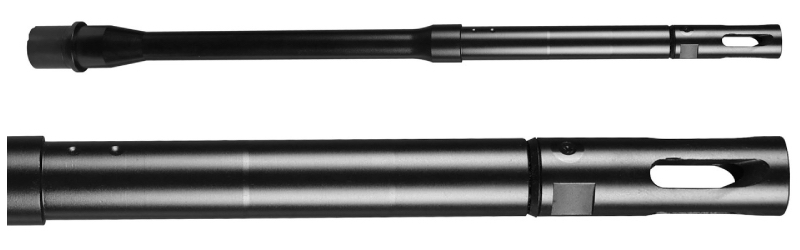

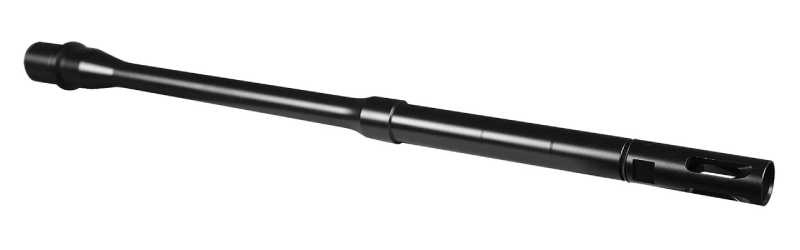

• Flash Hider Configuration: Features permanently-attached flash suppressor

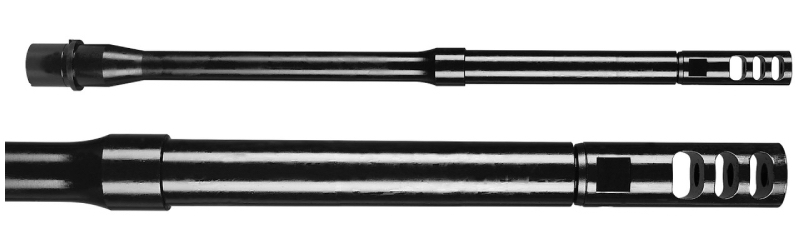

• Brake Configuration: Equipped with permanently-attached muzzle brake

Technical Details

Barrel Construction

• Length: 14.5 inches
• Material: 4150 chrome-moly vanadium steel
• Surface Treatment: Melonite QPQ finish
• Twist Rate: 1:7 (stabilizes all common bullet weights)
• Gas System: Mid-length configuration

Chamber Specifications

• Chambering: 5.56x45mm NATO
• Compatibility: Full compatibility with surplus mil-spec ammunition and commercial .223 Remington

Performance Features

The Melonite QPQ coating provides superior surface protection compared to traditional finishes. This coating offers a thinner profile than chrome-lining, reducing bore friction for enhanced accuracy potential. Additionally, Melonite demonstrates greater hardness than chrome-lining, resulting in extended barrel life.

Compliance and Length

Legal Specifications

The permanently-attached muzzle devices bring the total barrel length to a compliant 16+ inches overall, meeting federal requirements without compromise. This configuration eliminates the legal complexities often associated with shorter barrel lengths.

Pricing and Availability

Both barrel configurations are available at a retail price of $294, making them an accessible option for builders seeking professional-grade results without the associated gunsmithing costs.

Manufacturer Statement

According to YHM, these barrels are "Pinned and welded for a legal 16+" overall length. The low profile muzzle device allows the use of any gas block with a .750" inside diameter." The company emphasizes that their barrels feature 5.56x45mm NATO chambers for maximum ammunition compatibility, constructed from 4150 chrome-moly vanadium steel with Melonite coating for ultimate surface protection and performance.
