Vortex Introduces Enhanced AR Platform Solution with New 34mm Sport Cantilever Mount
Author: Aleksa M. | Publish Date: Aug 21, 2025 | Fact checked by: Marko Lalovic
Addressing AR Optics Challenges
AR platform shooters face a unique mounting challenge when installing riflescopes. The need to achieve proper eye relief while maintaining optic positioning on the upper receiver's Picatinny rail requires specialized mounting solutions. Traditional ring mounts often fall short of providing the necessary forward placement needed for optimal scope positioning on AR-style rifles.
New Addition to Vortex Sport Lineup

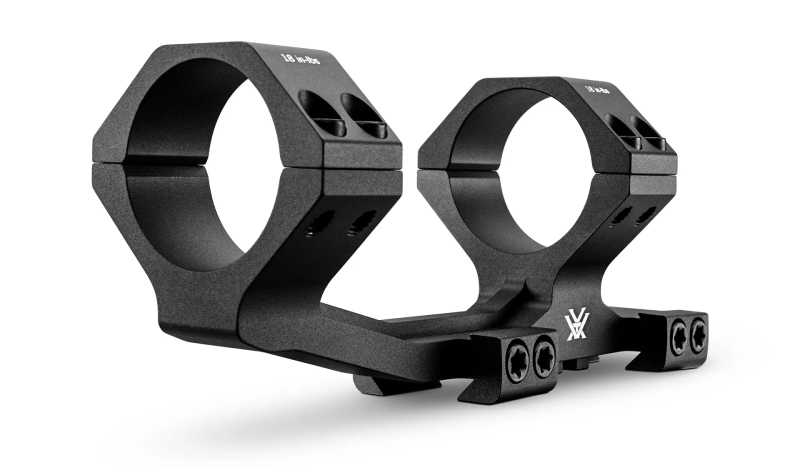

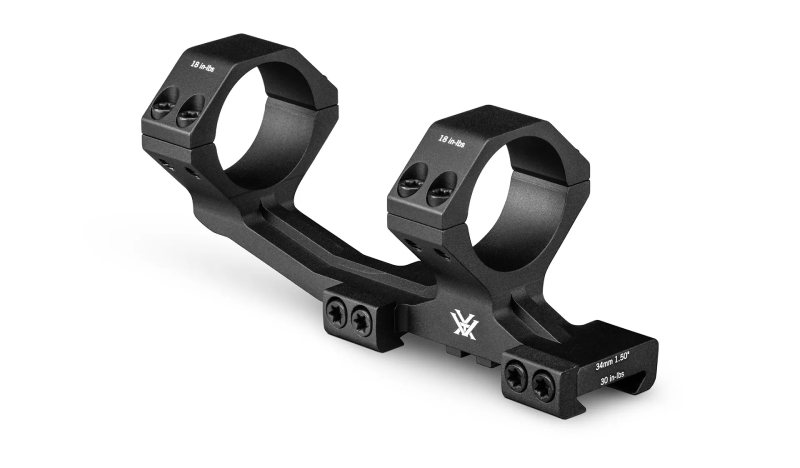

Vortex has expanded its popular Sport series with the introduction of the 34mm Sport Cantilever Mount, engineered specifically to address the mounting requirements of AR platforms. This latest addition targets both entry-level shooters and experienced AR users who demand reliable, adaptable mounting solutions for their precision shooting needs.
Design Features and Performance
The newly released 34mm mount incorporates a lightweight construction that doesn't compromise on strength or stability. Key design elements include:
- Extended rail compatibility for accessory mounting
- Robust build quality ensuring consistent zero retention
- Adjustable positioning capabilities along the rifle's rail system
- Custom-fit optimization for various AR configurations
The mount's engineering focuses on delivering unwavering stability during extended shooting sessions while maintaining the precision shooters expect from their optical systems.
Understanding Cantilever Mount Applications
AR-style rifles typically feature flat-top receivers equipped with Picatinny or Weaver rail systems that cover the upper receiver area without extending significantly forward. Cantilever-style mounts solve this limitation by projecting the mounted optic forward, establishing the correct eye relief distance between the shooter and the scope.
Optimal Positioning Guidelines
Scope Placement Recommendations

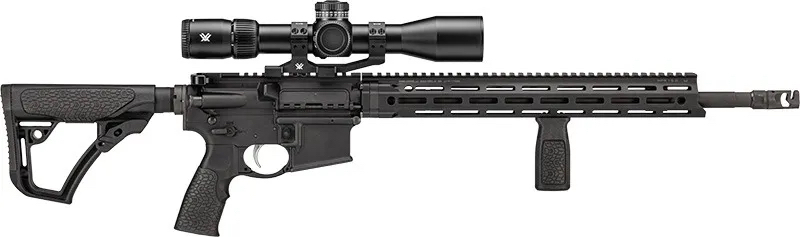

For most AR applications, the ideal scope positioning places the ocular lens approximately aligned with the charging handle's forward edge. However, individual shooter characteristics may require adjustments:
- Shooter height variations
- Individual facial structure differences
- Personal comfort preferences
- Specific shooting applications
Technical Specifications
The Sport Cantilever Mount features a 1.5" height specification and carries an MSRP of $179.99. Vortex offers this mounting solution in multiple tube diameter options to accommodate various scope configurations:
- 34mm tube diameter (newest addition)
- 30mm tube diameter
- 1" tube diameter
This comprehensive size range ensures compatibility with the majority of riflescopes currently available in the market, providing shooters with flexible mounting options regardless of their chosen optic specifications.
| Specifications | SPORT CANTILEVER 34MM MOUNT |
|---|---|
| TUBE SIZE | 34mm |
| CENTER SCOPE HEIGHT | 1.50" |
| MOUNT TYPE | Picatinny |
| CAP SCREW BIT SIZE | Torx® T-25 |
| BASE SCREW BIT SIZE | Torx® T-25 |
| CAP SCREW TORQUE | 15-18 in-lbs |
| BASE SCREW TORQUE | 30 in-lbs |
| WEIGHT | 5.39 oz. |
